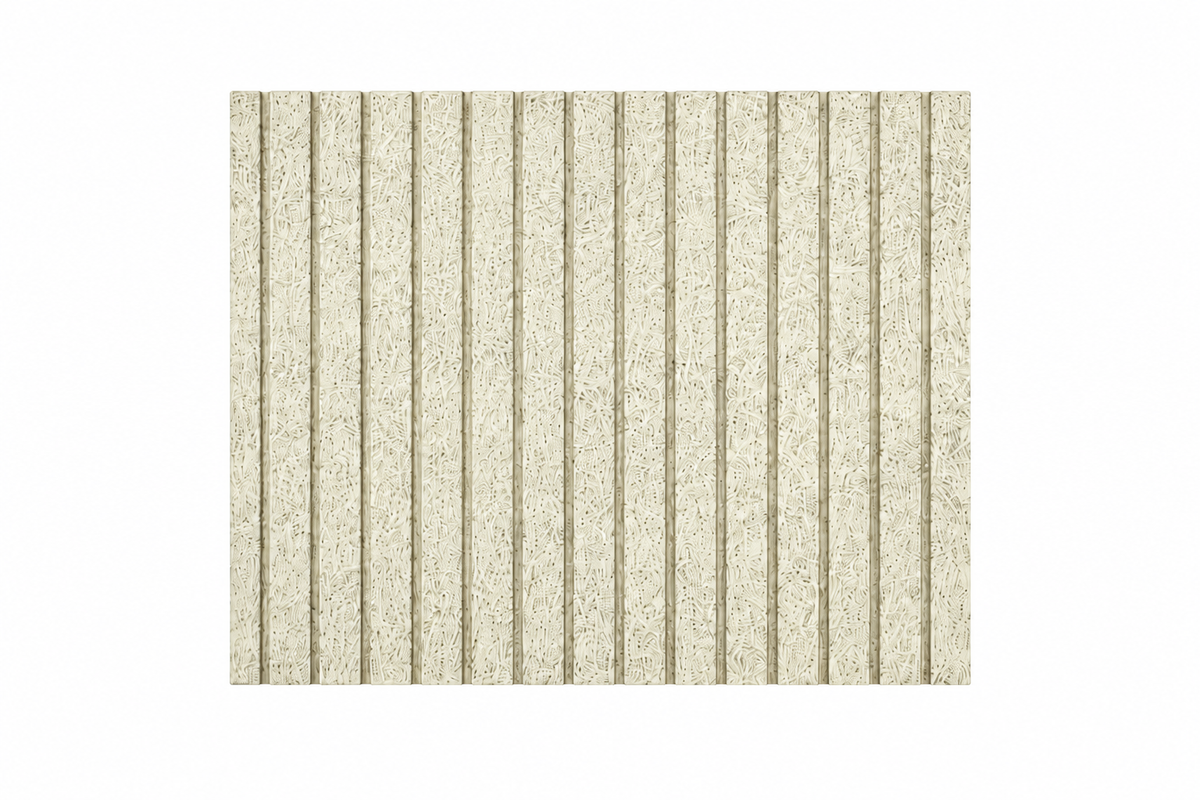

Grooved wood wool cement board (WWCB) acoustic panels from the Sonablock Design range, also known as fibrolite, made from PEFC-certified Latvian spruce fibres bound with Portland cement. Sonablock Groove Line adds evenly spaced longitudinal grooves to the standard 25 mm / 1.0 mm fibre panel, giving a clean, continuous surface with a distinctive linear look and a Euroclass B-s1,d0 fire rating.
The grooves are designed for direct mounting with screws: panels are fixed through the groove bottoms to timber battens, metal CD profiles or a flat supporting surface, so the fixings sit below the face and the finished wall or ceiling reads as one continuous grooved plane. No separate clip or edge-trim system is required.
Manufactured by Stiga RM, a PEFC-certified Latvian producer. Same material, fire classification and documentation set as the standard Sonablock 25 mm panel.
Acoustic Performance
- Open-structure wood wool surface, 1.0 mm fine fibre, 25 mm thick
- Sonablock panels reach up to αw 0.85 depending on fibre width, thickness and installation depth (manufacturer datasheet); the standard 25 mm / 1.0 mm panel measures αw 0.60 at 200 mm overall depth (RISE report O100282)
- Test data for Groove Line build-ups available on request
Fire Safety
- Euroclass B-s1,d0 per EN 13501-1
- Low smoke production (s1) · No flaming droplets (d0)
- Suitable for wall and ceiling installations
Technical Specifications
| Thickness | 25 mm |
| Fibre width | 1.0 mm |
| Surface | Longitudinal grooves (Groove Line) |
| Panel size | 1200 × 600 mm |
| Edge profile | B5 |
| Weight | 11 kg/m² (7.92 kg per panel) |
| Thermal conductivity | λ avg. 0.067 W/m·K (EN 13168) |
| Max. relative humidity | 90% RH |
| Mounting | Direct screw fixing through the grooves |
| Packaging | 44 panels per pallet (31.68 m²) |
| Standards | EN 13168, EN 13964 |
| Designation | WW-EN13168-L4-W2-T2-S2-P2-Cl3 |
Available Colours
Natural (unpainted) · White (similar to RAL 9010) · Grey · Black (similar to RAL 9011)
Custom RAL / NCS colours available on request - contact us for a quote.
Certifications
- CE marking per EN 13168:2012+A1:2015
- Declaration of Performance available on request
- PEFC Chain of Custody (BMCERT-PEFC-COC-00175, valid to Feb 2028)
- Environmental Product Declaration - EPD-IES-0031288 (valid to 2031)
- No added formaldehyde · REACH compliant
